Core Definition & Strategic Value of Packaging Dielines

What Exactly Is a Dieline (Also Called Keyline)?

A dieline is a layered, vector-only flat template that unfolds a 3D packaging structure into a 2D layout. It contains color-coded guide lines exclusively for die-cutting machines and prepress teams; these structural guides never print onto your final packaging surface. Every custom packaging variant—auto-lock bottom cartons, tuck-top gift boxes, corrugated shipping boxes, hang tags and adhesive labels—requires a custom dieline matched to exact product dimensions, substrate thickness and assembly design.

Why Dielines Determine Cross-Border Packaging Success

Working with overseas packaging suppliers creates extra room for miscommunication without standardized dielines. Professional dielines deliver four irreplaceable commercial benefits for global brands:

1. Unmatched Dimensional AccuracyEven 0.5mm measurement deviation on a dieline will render boxes ill-fitting for your products, leading to loose internal shifting or impossible assembly. Standardized dielines lock in exact length, width, depth and flap sizes compatible with factory die-cut equipment.
2. Global Brand Visual ConsistencyFor brands selling across EU, US, Southeast Asian and Australian markets, unified dieline templates guarantee identical logo, barcode and copy positioning across all production batches, eliminating inconsistent shelf presentation in international retail channels.
3. Lower Production Costs & Reduced Lead TimesFactories reject malformed dieline files and send them back for revision, adding 3–7 working days to production schedules and incurring extra proofing fees. Clean, printer-ready dielines streamline prepress RIP processing, cut down material scrap during die-cutting and avoid costly full print reruns.
4. Reliable Quality Control BenchmarkPackaging QC teams reference dielines to verify trim alignment, crease depth and glue flap placement. Without a validated dieline, manufacturers lack an objective standard to resolve disputes over misprinted or misshapen cartons.

Dieline Priorities for Two Core Buyer Segments

A) E-commerce / Amazon FBA Sellers

Logistics resilience shapes your dieline layout. Shipping boxes need reinforced dust flaps, extended glue tabs and buffer edge extensions marked directly on the dieline to absorb compression during ocean freight and last-mile delivery. The template must reserve extra safe zone space for shipping labels and FBA barcode stickers.

B) Retail In-Store Brand Owners

Shelf-display packaging prioritizes symmetrical front panel layouts on the dieline, precise hang tab cut lines and minimal crease interference over primary brand artwork. Dielines for retail cartons also integrate dedicated perforation lines for tear-off promotional sections or resealable consumer packaging.

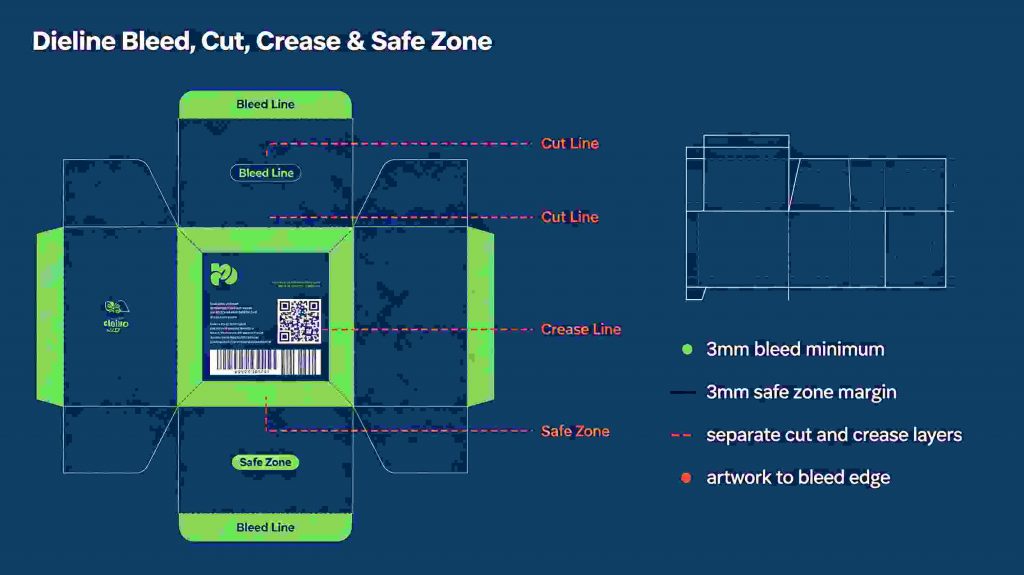

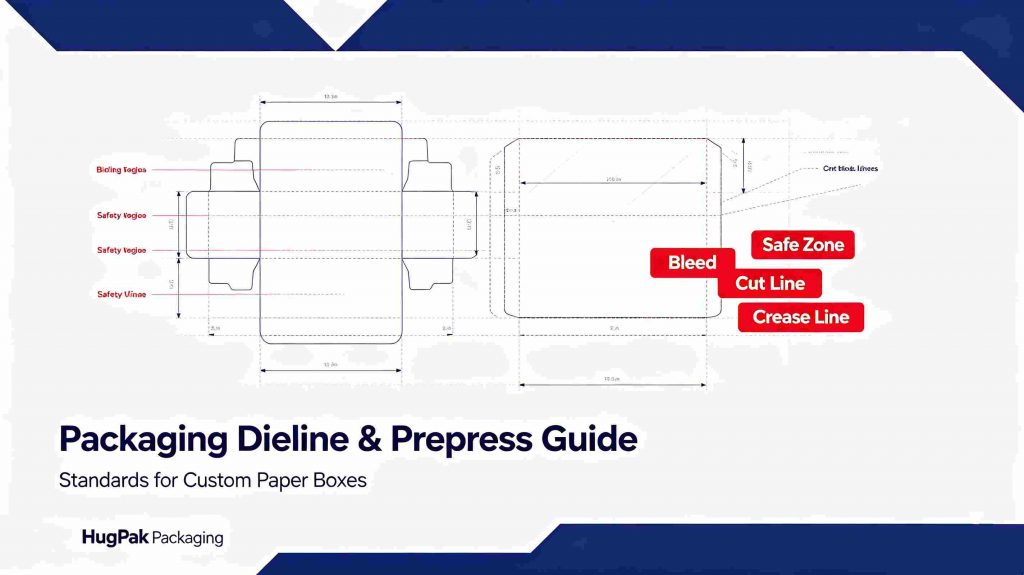

Breakdown of All Standard Dieline Structural Components (With International Factory Color Coding Standards)

Every production-grade dieline separates structural guides onto locked, distinct layers with industry-universal color coding recognized by printing facilities across Asia, Europe and North America. Each line type serves a unique mechanical function for die-cutting machinery:

2.1 Cut Lines (Solid Black Hairline, 0.25pt Stroke)

The primary outer boundary of your unfolded box panel. Die-cut blades follow black cut lines to separate finished cartons from raw paperboard or corrugated stock. Critical rule: cut lines must sit on an isolated spot-color layer set to overprint, never merged with brand artwork layers.

2.2 Score / Crease Lines (Solid & Dotted Red Lines)

Red crease lines mark pre-compressed grooves that enable crisp, clean folding without paper cracking. Thicker substrates (300gsm coated art paper, E-flute corrugated) require double-score markings on dielines to avoid surface ink breakage during assembly.

2.3 Bleed Boundary Lines (Solid Green Outer Frame)

Bleed is the mandatory extended graphic zone beyond all cut lines, designed to offset minor shifting during printing and trimming. International packaging standard bleed minimums:

• US / UK market: 0.125 inch (3.175mm) on all four sides
• EU / Australia market: 3mm minimum bleed

Bleed lines separate printable extended backgrounds from the finished box trim area; all gradients, full-panel patterns and background colors must stretch fully to the green bleed edge to eliminate unsightly white borders on finished packaging.

2.4 Safe Zone Margin (Dotted Green Inner Frame)

The non-negotiable protected inner zone where all irreplaceable brand assets reside: logos, product copy, GS1 barcodes, QR codes, ingredient text and regulatory warning labels. Global prepress rule: keep all critical graphics at least 3mm inward from every black cut line. Safe zones account for substrate movement on high-speed rotary printing presses and slight die-cut registration drift.

2.5 Glue Flap Markers (Green Cross Symbols)

Cross icons printed on dedicated dieline layers flag adhesive application zones for automated box gluing machines. One key structural exception: auto-lock bottom carton dielines omit glue cross markers entirely, as interlocking flaps assemble without liquid adhesive or tape.

2.6 Perforation Lines (Dotted Blue Lines)

Specialized tear-strip or easy-open packaging adds blue dotted perforation lines to dielines, instructing die tools to create micro-cut tear edges for resealable food, cosmetic and electronic boxes.

2.7 Emboss / Deboss / Foil Stamping Guides (Yellow Solid Lines)

For luxury packaging finishing, dielines add separate yellow outline layers marking areas for hot foil, embossing or spot UV coating—these guides are processed independently post-printing and must not overlap core cut or crease layers.

Step-by-Step Workflow to Create Print-Ready Dielines for Overseas Packaging Factories

This standardized workflow aligns with prepress requirements for Chinese, Vietnamese and European packaging manufacturers, eliminating file rejection risks:

Step 1: Confirm Exact Structural Dimensions & Substrate Specs

Start by locking final box measurements (L × W × D) and share paperboard weight, corrugated flute grade and folding style (tuck top, auto lock bottom, straight mailer) with your packaging factory first. Cardboard thickness impacts flap sizing and crease positioning—never design a dieline without confirming substrate details from your supplier.

Step 2: Select Professional Vector Design Software

Raster tools (Canva, Photoshop) cannot generate production-compliant dielines; only vector software supports layered structural guides:

• Adobe Illustrator (Global Industry Standard): Best for custom complex cartons, multi-layer dielines and exportable print-ready PDFs
• Esko ArtiosCAD: Packaging-specific CAD software for large-scale industrial folding carton and corrugated box dielines
• CorelDRAW: Widely used by mid-sized printing factories across Southeast Asia
• Packly: Cloud-based quick template generator for simple standard mailer boxes for small-batch e-commerce orders

Step 3: Build Layered Dieline Template (Non-Negotiable Layer Separation Rule)

Create locked, independent layers in this fixed order (bottom to top):

1. Bleed Background Layer (artwork extending to bleed edge)
2. Main Brand Artwork Layer (CMYK color graphics only)
3. Structural Dieline Layer (cut, crease, perforation lines locked, non-print spot color)
4. Finishing Layer (foil, emboss, UV guides, hidden from default view)

Never flatten or merge dieline structural layers with artwork—factories cannot edit or validate trim guides if rasterized together.

Step 4: Add Standardized Bleed & Safe Zone Margins

Input factory-specified bleed values on all four sides of the artboard, then draw dotted green safe zone offsets inside the black cut lines. For boxes with uneven flaps (e.g., deep dust flaps), extend bleed evenly across every irregular edge.

Step 5: Code All Guide Lines With Universal Factory Color Standards

Follow the black/red/green/blue/yellow color system outlined above; label each layer clearly (“CUT LINES”, “SCORE LINES”, “BLEED GUIDE”) for prepress teams that do not speak your native language.

Step 6: Apply Cross-Border Prepress File Format Rules

Before exporting your final dieline file, complete mandatory file prep for international printers:

• Color Mode: Convert all artwork to CMYK (8-bit); supply separate PMS Pantone swatch libraries for brand spot colors (RGB files cause severe color shifting on offset printing presses)
• Image Assets: All embedded photos set to minimum 300 DPI at full print size, no low-resolution web JPGs
• Text Treatment: Convert every font to outlines to eliminate missing font errors at overseas factories; minimum text size 6pt, 100% K single black for barcodes and QR codes
• Stroke Minimum: All fine decorative lines no thinner than 0.25pt to avoid broken print details

Step 7: Export Printer-Compliant File

Export two deliverables for your packaging manufacturer:

1. Editable source file (.AI native Illustrator file)
2. Press-ready PDF/X-1a with bleed marks retained, dieline layers visible for prepress review

Costly Common Dieline Mistakes That Delay Global Packaging Orders (With Fixes)

Most cross-border packaging production hiccups stem from avoidable dieline errors, which lead to rework fees, delayed shipment and wasted raw materials. Below are the top 10 frequent mistakes and industry-standard solutions:

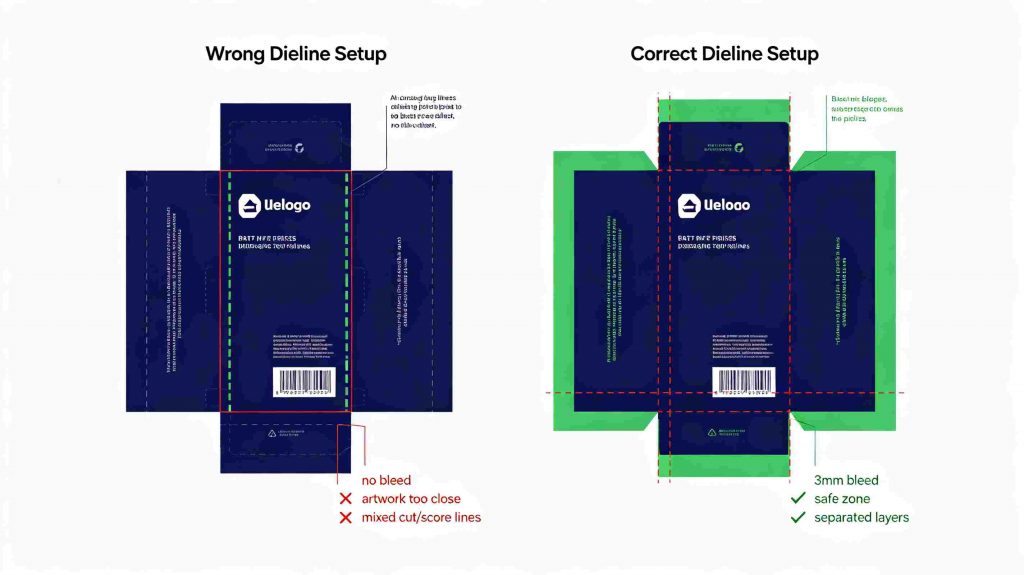

1. Missing or Undersized Bleed MarginsMistake: Artwork terminates directly at cut lines. Result: White blank edges on all finished boxes after trimming.Fix: Extend all background graphics 3mm past every cut line per factory specifications.
2. Critical Brand Assets Inside Safe Zone Boundaries ViolationMistake: Logos, barcodes or product text placed less than 3mm from trim edges. Result: Partial cropping of core branding on finished cartons.Fix: Lock all mandatory visual assets fully within the dotted green safe zone frame.
3. Merged Dieline & Artwork LayersMistake: Structural cut/crease lines flattened onto color graphics. Result: Die-cut guides print visibly across box surfaces; factories cannot adjust trim paths.Fix: Maintain separate locked dieline layers, marked as non-print spot colors.
4. Incorrect Color Mode (RGB Instead of CMYK)Mistake: Design created in RGB screen color space. Result: Muted, inaccurate brand colors on offset printed packaging.Fix: Convert entire document to CMYK at project start; supply Pantone swatches for brand identity matching.
5. Unconverted Fonts / Tiny Text SizesMistake: Live text layers sent without outline conversion or sub-6pt copy. Result: Missing font substitutions, illegible fine print on small product boxes.Fix: Outline all text, keep functional copy above 6pt; use pure K100 black for machine-scannable barcodes.
6. Mismatched Box Dimension MeasurementsMistake: Self-estimated dieline sizes not cross-checked with factory CAD templates. Result: Boxes fail to fit target products or shipping cartons.Fix: Request an official blank dieline template directly from your packaging supplier before adding artwork.
7. Confused Cut vs Crease Line MarkingsMistake: Red fold lines mixed with black cut lines or inconsistent stroke weights. Result: Die-cut machines slice folding grooves through box panels, ruining structure.Fix: Strictly separate solid black cut lines and red crease lines on individual labeled layers.
8. Low-Resolution Embedded ImagesMistake: 72 DPI web images placed on packaging layouts. Result: Blurry, pixelated printed graphics on finished cartons.Fix: Replace all raster assets with 300 DPI minimum high-res photos aligned to print dimensions.
9. Ignoring Paperboard Thickness ImpactMistake: Generic thin-card dieline templates used for thick rigid boxes or heavy corrugated mailers. Result: Overlapping flaps, impossible box assembly.Fix: Adjust dieline flap widths based on your supplier’s substrate thickness recommendations.
10. Skipping Physical Prototype Proofing Before Mass ProductionMistake: Approving digital dieline mockups without physical sample fabrication. Result: Structural folding flaws discovered only after full print runs complete.Fix: Request a blank paper mockup and a full-color printed prototype to test assembly, fit and branding positioning before mass order confirmation.

Industry Best Practices for Dieline Collaboration With Overseas Packaging Manufacturers

Smooth cross-border packaging workflows rely on transparent dieline communication between brand designers and offshore printing factories. Follow these universal best practices:

5.1 Align Dieline Specs With Your Factory Early

Share your product dimensions, shipping method (ocean freight, air courier), target market regulatory requirements and finishing requests (foil, emboss) before drafting any dieline. Many manufacturers provide free pre-built blank dieline templates for standard box styles to eliminate measurement errors.

5.2 Conduct Dual Digital & Physical Proof Reviews

First review the factory’s digital PDF mockup mapped over your dieline to spot layout misalignment; next approve a physical printed sample to validate crease quality, bleed coverage and safe zone compliance. Never sign off on mass production with only digital previews.

5.3 Standardize File Naming & Layer Labeling for Cross-Language Teams

Name dieline files clearly: [BrandName_BoxType_Size_Dieline_Version2.ai]. Label every structural layer with simple English tags (“CUT LINES”, “SAFE ZONE GUIDE”) to avoid misinterpretation by non-English-speaking prepress operators.

5.4 Archive All Final Approved Dieline Source Files

Store locked, final dieline source files in cloud storage for repeat bulk orders. Reusing validated templates eliminates repeated file creation work and maintains consistent packaging across seasonal product launches.

5.5 Communicate Special Logistics Requirements on the Dieline Brief

If your packaging requires stack resistance for container shipping, resealable tear strips or dedicated FBA label panels, note these structural needs to your factory so they integrate corresponding perforation and flap guides into the base dieline template from the start.

Prepress Production Workflow: How Factories Process Your Submitted Dieline File

Understanding the factory prepress pipeline helps you submit error-free dielines every time:

1. File Receipt & Initial Audit: Prepress technicians separate dieline layers and validate bleed, color mode, image resolution and outlined fonts; flawed files are flagged and returned for revision.
2. Die Tool Creation: Engineers convert validated black cut lines into physical steel die blades for die-cutting machines; red crease lines map to scoring wheel placement.
3. Plate Output: CMYK artwork layers generate offset printing plates, while non-print dieline guides are hidden during plate making.
4. Test Run & Sample Fabrication: Small batch test prints run through die-cutters to cross-reference finished physical boxes against the original dieline blueprint.
5. Mass Production Launch: Once sample alignment, folding and branding match the dieline spec, full-scale printing, die-cutting, folding and gluing commences.

Frequently Asked Dieline Questions for Global Packaging Buyers

Q1: What minimum margin rules apply to all dieline artwork?

All logos, text, barcodes and regulatory graphics must sit 3mm inward of cut lines (safe zone). All background visuals must extend a minimum 3mm past every cut line for bleed.

Q2: What is the difference between a dieline and trim line?

Trim lines are a subset of dielines—the black solid cut lines that define the final outer edge of the box after trimming. A full dieline includes trim lines plus crease, bleed, safe zone and perforation guides.

Q3: Can I use JPG or PNG raster files as official dielines for printing?

No. Raster images cannot generate accurate die-cut tooling and pixelate at production scale. Factories exclusively accept vector AI, EPS or print-ready PDF dielines.

Q4: Do auto-lock bottom cartons require glue markers on dielines?

No. Interlocking bottom flap structures assemble mechanically without adhesive, so green cross glue markers are omitted from these dieline templates.

Q5: What separates a keyline and a dieline?

The two terms are interchangeable within global packaging printing industries. Dieline (keyline) is the universal name for all vector structural templates containing cut, crease and perforation guides used to manufacture die-cut tools.

Q6: Can I resize or stretch a pre-made factory dieline template?

Never scale or warp a validated blank dieline template. Resizing distorts crease spacing, flap proportions and structural geometry, resulting in unassemblable boxes. Request a custom-sized dieline file from your manufacturer instead.

Conclusion

A professionally structured, factory-compliant dieline is the foundational backbone of every successful cross-border custom packaging project. Brand owners and designers who master layered dieline construction, international bleed/safe zone standards, prepress file rules and prototype validation eliminate costly production delays, material waste and inconsistent finished packaging quality.

By following the standardized workflow, error prevention checklist and cross-border collaboration best practices outlined above, you will streamline communication with overseas packaging manufacturers, accelerate order lead times and deliver polished, structurally sound printed boxes that elevate your brand across global retail and e-commerce channels. Always prioritize physical prototype testing against your final dieline before approving mass printing to guarantee flawless packaging results every production run.
