Freshly harvested fruits demand purpose-built packaging to retain firm texture and market value through field pre-cooling, on-site handling and multi-layer pallet export shipments. To keep produce intact amid heavy commercial logistics, your lug boxes must balance compressive strength, optimized airflow design and fast field assembly capabilities. When selecting high-performance fruit and vegetable cartons, structural design is the core consideration: the packaging must withstand heavy static stacking loads inside cold storage while enabling rapid heat removal from freshly picked crops.
Founded in 2013, HugPak Packaging brings more than 20 years of specialized fruit packaging know-how from its senior packaging engineering team to manufacture export-grade corrugated lug boxes. We operate a fully integrated production workshop covering printing, lamination, mounting, die-cutting, pasting and warehousing. Every box design from HugPak Packaging complies with international phytosanitary rules, global logistics standards and modern environmental regulations.
Global agricultural packaging standards including ISO 28219 and FEFCO specifications define structural benchmarks for fresh produce transit. Drawing on these engineering principles, HugPackaging develops corrugated harvest lug boxes built around five core design pillars:
- Interlocking Stacking Tabs for Multi-Tier Vertical Stability: Precisely die-cut top locking tabs and bottom receiving slots maintain vertical pallet alignment and stop lateral shifting even under dense multi-box stacking.
- Engineered Ventilation Cutouts for Fast Field Pre-Cooling: Symmetric air vents placed on non-load-bearing side panels deliver uniform forced-air circulation to eliminate field respiration heat quickly.
- Tape-Free Self-Locking Structure & Precision Die-Cutting: Integrated crease lines and built-in locking tabs allow workers to assemble empty boxes by hand directly in fruit orchards, with no extra tools required.
- Flat-Knockdown Design Optimized for Global Pallet Logistics: Delivered flat to save massive shipping space; box dimensions match standard international pallet footprints for seamless container loading.
- 100% FSC-Certified Raw Materials & Food-Grade Contact Certification: Sustainable corrugated kraft paper sourced from responsibly managed forests, meeting global food-contact safety requirements and export recycling policies.

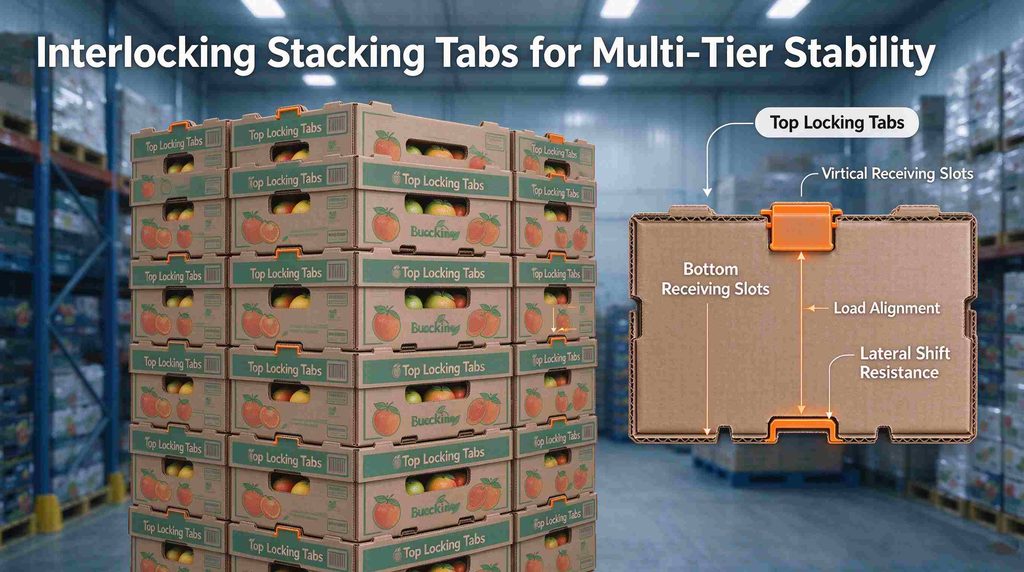

Interlocking Stacking Tabs and Multi-Tier Vertical Stability
Stable multi-tier pallet stacking at field staging zones and cold-chain transport relies on interlocking box geometry. Fruit lug boxes normally ship without full display lids, so stacking stability comes entirely from mechanical contact between stacked layers. Precision die-cut locking tabs along each box’s top rim slot neatly into matching openings on the base of the box stacked above. This tab-and-slot locking system limits sideways movement, preserving straight pallet columns when facing road vibration, bumpy orchard terrain and long-distance ocean freight.
For agricultural lug boxes, compressive weight concentrates on four vertical corner columns. HugPackaging customizes box construction for different fruit densities and shipping routes. 3-layer single-wall cartons work for local orchard picking, while reinforced 5-layer double-wall boxes serve heavy, shock-sensitive export crops like durian and melon for extended cold-chain trips.
High humidity inside cold warehouses can soften ordinary paper fibers over time. HugPackaging’s harvest lug boxes adopt water-resistant adhesive and surface treatments, including water-based varnish, anti-scratch coating and biodegradable barrier lamination. These treatments retain board stiffness and edge crush resistance, protecting box integrity through lengthy refrigerated storage or sea transit.

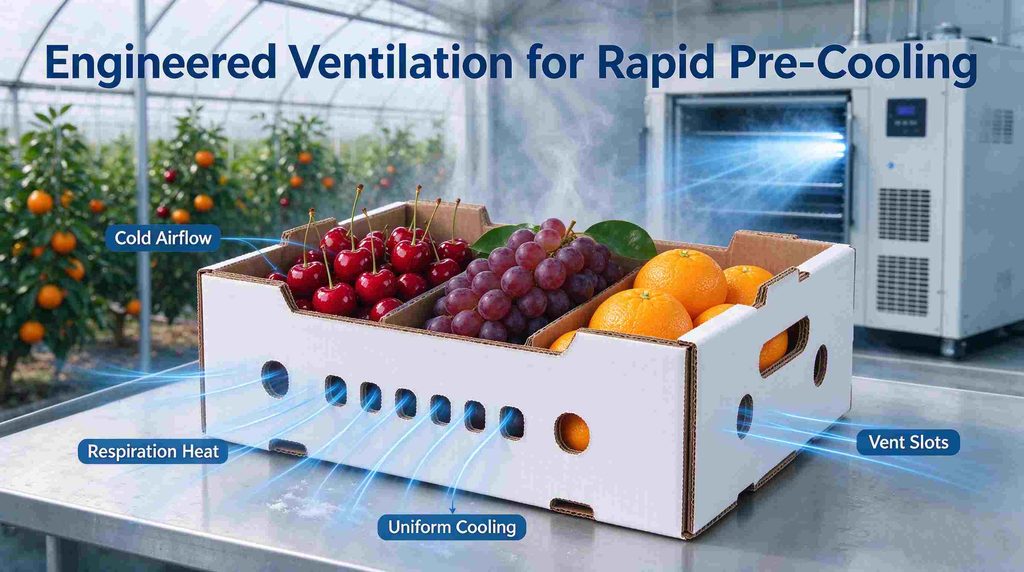

Engineered Ventilation Apertures and Rapid Field Pre-Cooling Convection
Extended post-harvest shelf life depends on fast removal of field heat and steady venting of metabolic gases. Freshly harvested cherries, berries, grapes and citrus release large amounts of respiration heat plus ethylene immediately after picking. If trapped inside non-ventilated packaging, rising internal temperatures speed up ripening, soften fruit flesh and trigger fungal rot. Strategically designed ventilation openings create controlled air convection to stabilize temperatures across the whole packed load.
Vent design requires balancing airflow efficiency and box compression capacity. Large holes cut along primary stress-bearing vertical sections weaken stacking strength. HugPackaging structural engineers place elongated ventilation slots only on low-stress horizontal zones and side panels, keeping the vertical corner load-bearing structure intact. When stacked vertically on standard pallets, these vents line up across boxes to form continuous air channels. During forced-air pre-cooling, cold air penetrates deep into pallet cores to flush out respiration heat and bring fruit pulp temperatures down to cold-chain targets. Real packaging tests show this ventilation layout can cut fruit spoilage in transit by up to 80% compared to traditional non-ventilated cartons.

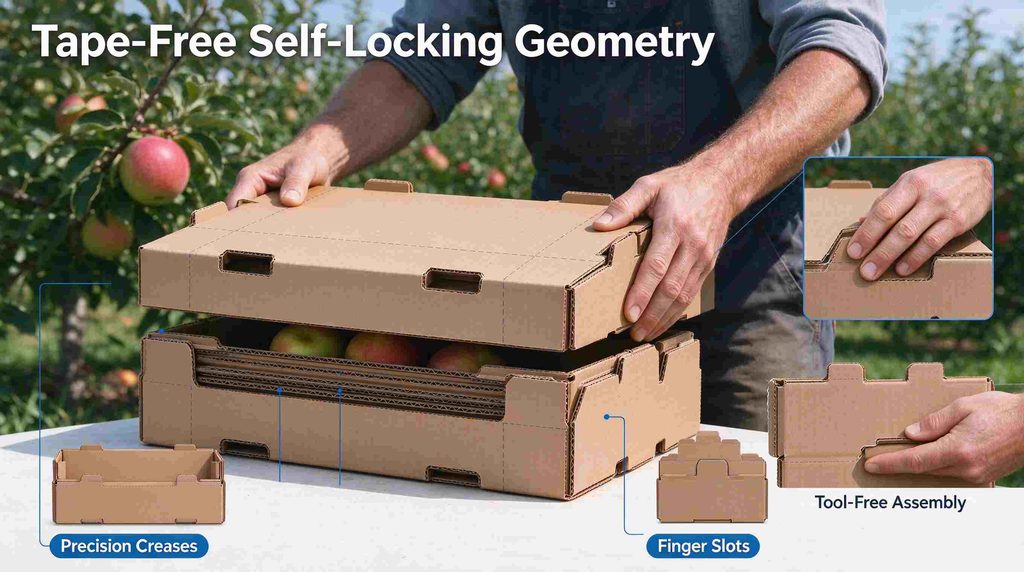

Tape-Free Self-Locking Geometry and High-Precision Die-Cutting Standards
Field packing efficiency depends on quick, tool-free box assembly right at harvest rows. Bringing tape dispensers, hot melt glue or metal staples into orchards slows packing speed and introduces foreign contaminants into your product line. Modern corrugated harvest lug boxes use self-locking folding profiles; simple manual folds turn flat blanks into rigid open-top containers. Double-thickness end panels fold inward to lock bottom flaps securely, while built-in finger holes provide comfortable hand grips for packing crews.
For fragile fruit types requiring individual separation, we can custom-make die-cut paper dividers or compartment inner trays. These inserts prevent fruit-on-fruit friction and impact damage over bumpy overland transport without foam plastic fillers.
Manufacturing reliable self-locking boxes demands tight dimensional consistency for every crease and locking tab. Tiny cutting inaccuracies can cause stuck panels or loose tabs that break apart during shipment. HugPackaging controls precision with in-house automated production lines for printing, laminating, mounting, CNC die-cutting and automatic pasting. Hardened steel cutting tools maintain strict folding tolerances so farm staff can erect each carton smoothly within seconds. Every batch goes through rigorous physical quality checks, including box compression testing, drop tests and edge crush testing before shipment.

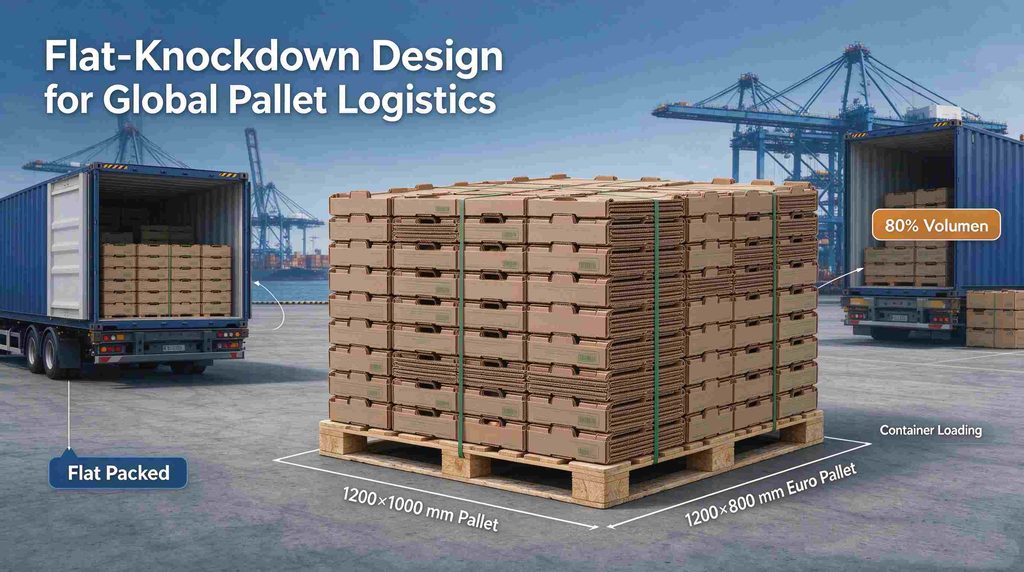

Flat-Packed Knockdown Logistics and Global Pallet Modularization
Agricultural packaging logistics need to maximize loading efficiency both before and after harvest season. Shipping fully pre-assembled empty cartons wastes freight space on empty air and raises transport costs significantly. Flat-packed knockdown lug boxes arrive bundled and palletized, cutting transit volume by up to 80% versus rigid finished boxes. This space reduction lowers inbound transport fuel costs and saves valuable warehouse space at farms ahead of peak picking seasons.
Our design optimizes outer dimensions for global pallet standardization. HugPackaging engineers lug box footprints to fit widely used international pallet sizes, including 1200 x 1000 mm industrial pallets and 1200 x 800 mm Euro pallets. Modular box sizes fully cover pallet surfaces without overhang, ensuring vertical corner loads transfer safely down through stacked layers. After pallet stacking, stretch film secures the whole load into a stable, slip-resistant unit. This standardized palletization works well for sea freight, air cargo and refrigerated trucking across HugPackaging’s worldwide client network, serving buyers in more than 15 countries.
100% FSC-Certified Substrates and Verified Food-Grade Contact Compliance
Export agriculture markets enforce strict sustainability rules and food-contact safety requirements. EU packaging regulations, Extended Producer Responsibility directives and North American retail standards push to reduce single-use plastics across farm supply chains. Corrugated harvest lug boxes deliver a fully compostable, biodegradable and recyclable alternative to traditional EPS foam containers and disposable plastic crates.
HugPackaging manufactures fruit lug containers using paper stock sourced entirely from FSC-certified responsibly managed forests, with options containing up to 70% post-consumer recycled fiber. All paper substrates, water-based adhesives and soy printing inks meet international food-contact hygiene standards. This guarantees no harmful chemical migration or unwanted odors transfer from box surfaces to delicate fresh fruits. Our factory operations follow ISO 9001 quality management, ISO 14001 environmental management and ISO 45001 occupational health standards. Regular BSCI and SEDEX audits verify social accountability and factory compliance, satisfying audit requirements for global retail buyers.
Commercial Procurement Benefits: Direct Sourcing from HugPackaging
Working directly with packaging manufacturers brings measurable technical and financial benefits for large-scale agricultural projects. Direct collaboration with our structural packaging engineers allows custom flute grades, tailored vent sizing and high-resolution brand printing, with no markup from middlemen. HugPackaging supports seasonal planning through rapid prototyping: custom physical samples are ready within 1–3 days, followed by express delivery in 3–10 working days for field trials.
Consistent supply during peak harvest windows relies on strong manufacturing capacity. HugPak Packaging runs multiple dedicated production lines capable of outputting over 50,000 boxes daily to fulfill bulk seasonal orders reliably. Standard volume orders finish production in 7–10 working days. Large peak-harvest bulk shipments ship in 10–15 working days with flexible trade terms including EXW, FOB, CIF and DDP. Beyond our in-house multi-stage QC checks, HugPackaging accepts independent third-party inspections from agencies like SGS and TUV to confirm export readiness before container loading. Contact us now for your solution.
